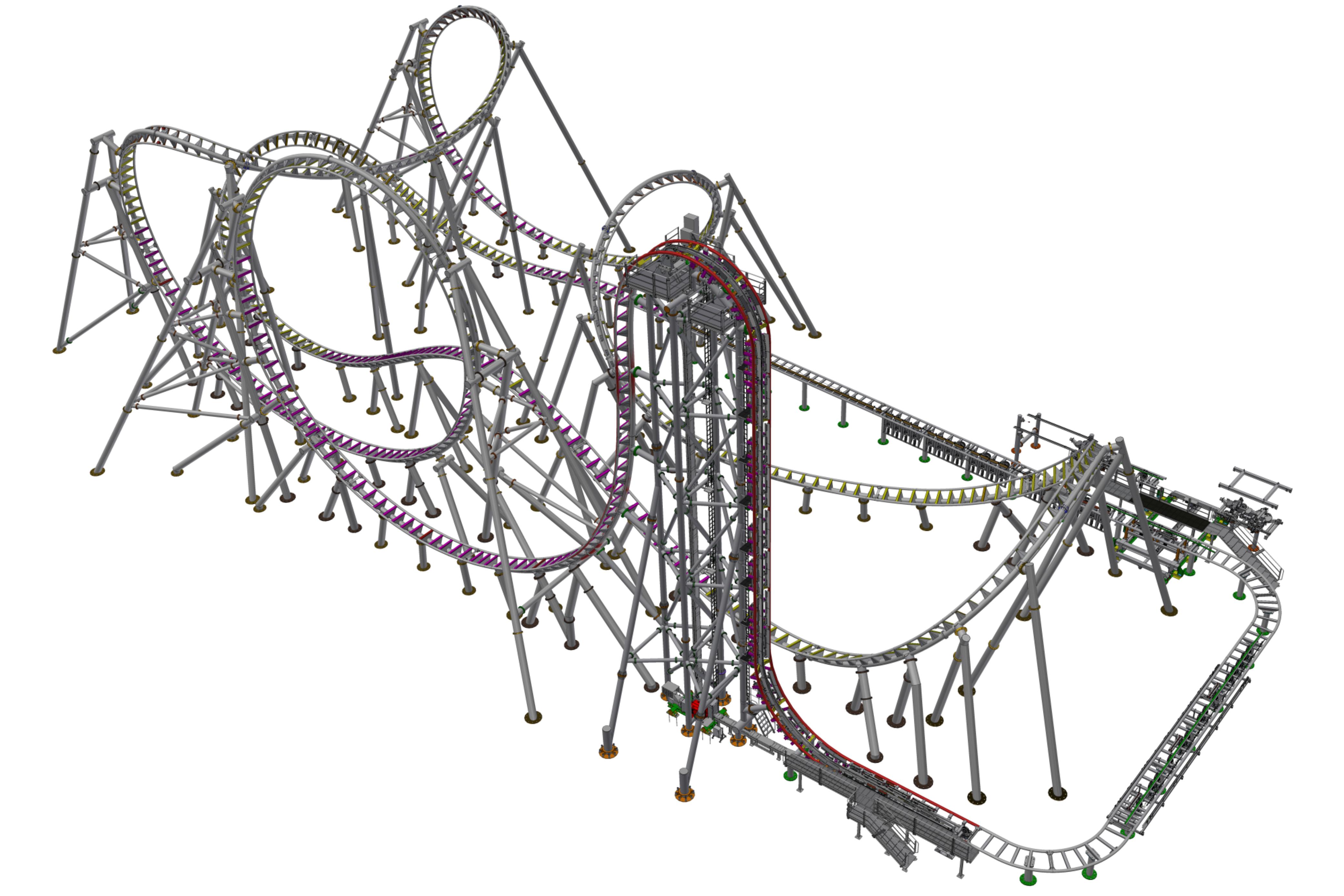

LIGHTNING LIFT image
T R

FEEL THE EXTREME THRILL!

Lightning Lift Coaster: the vertical lift and vertical drop are the simply most exhilarating way to start a roller coaster experience.

This iconic structure will be the feature piece of your print and digital marketing campaign.

A high-capacity thrill ride with a myriad of potential layouts and elements.

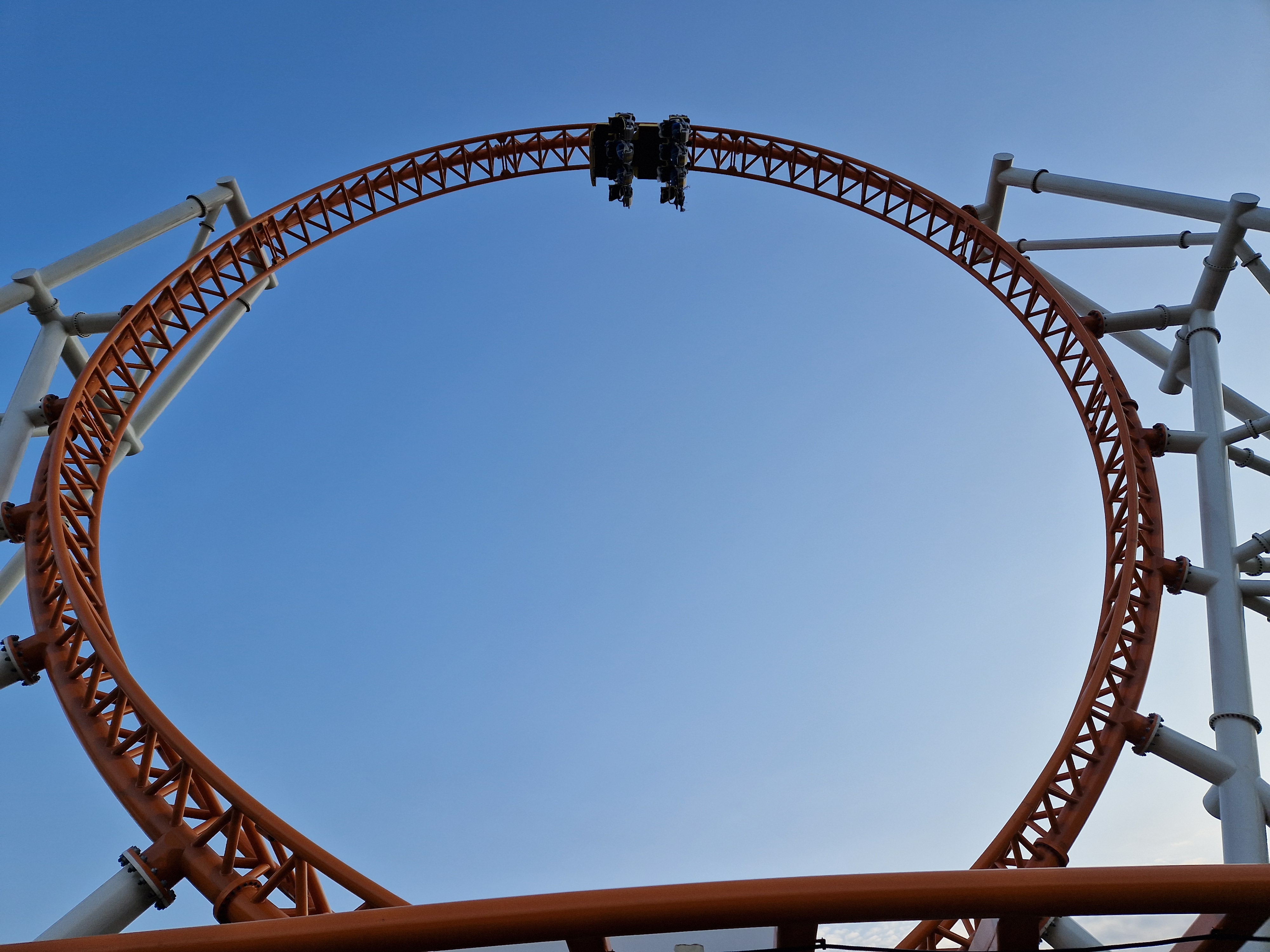

To date we have utilized thrilling elements like the Vertical Loop, Immelman Turn, Corkscrew, Dive Loop and many others to create world-class experiences.

The vertical lift has a customized magnetic braking system. In case of a power outage the vehicle can easily be rolled backwards down the lift to allow for a ground-level evacuation.

We offer both standard and custom layouts to meet your capacity and budgetary needs.

Highlights:

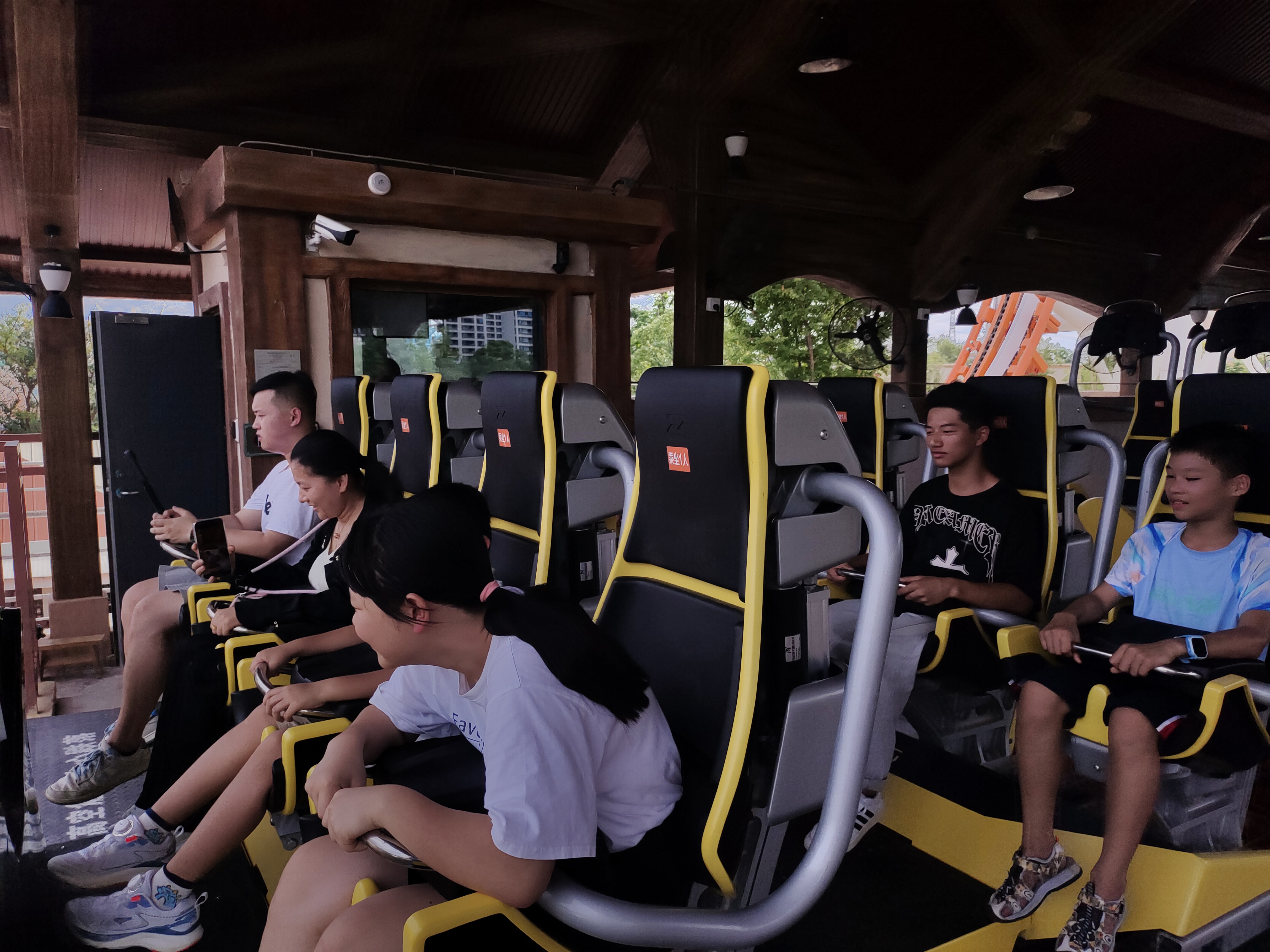

New Restraint and Seat: the Lightning features open seating that keeps riders safe with a comfortable, redundant lap bar. The goal was to create a vehicle that was ergonomic while also creating open seating.

Capacity: the train’s open design allows for a higher real hourly capacity. Guests can enter and exit the train much faster than the competition.

Re-Imagined Car Body: the entire chassis is aluminum-milled. This not only allows the vehicle to weigh less; it dramatically reduces the amount of NDT (Non-Destructive Testing) required every off-season. This minimizes the cost of ownership when compared to traditional roller coaster vehicles.

Durable Seats: we re-examined every part of the ride to increase ease of maintenance. One dramatic improvement is in the seat padding application. Our design allows for sections of padding to be replaced in a matter of minutes and divides the seats into several sections, lowering the annual replacement costs.

Meet any Capacity: the Lightning train system is our modular thrill platform, and we design trains to fit your budget and capacity requirements.

375 M

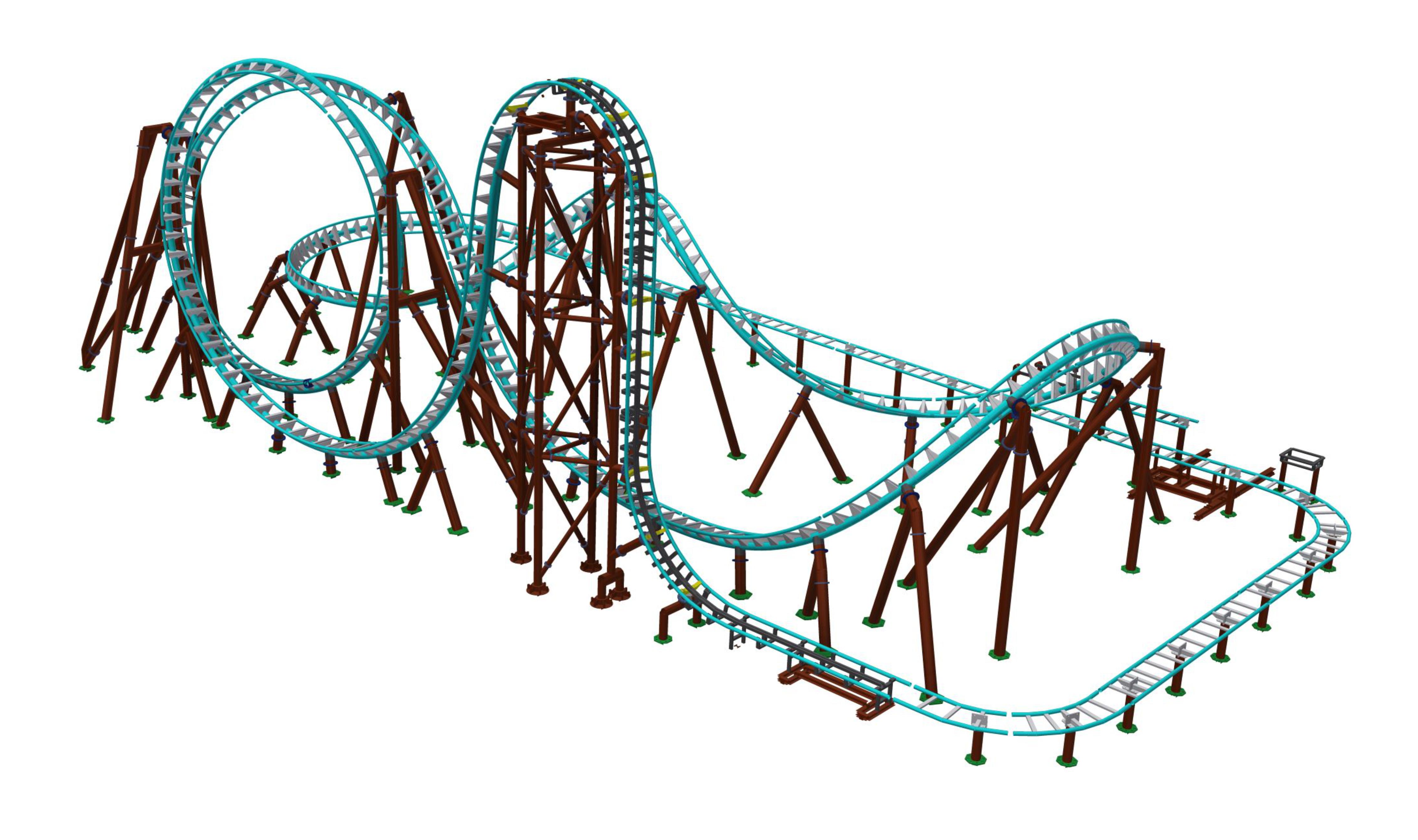

375 M tech drawing
Track length
375 m (1230 ft)
Footprint
70 x 39 m (226 x 129 ft)
Max speed
70 km/h (43 mph)
Restraint type
Lap Bar
Height restriction
120 cm (48 in) minimum
Theoretical hourly capacity
600 pph
Load/unload time
45 s
Ride time
98 s
Number of vehicles per train
3
Power requirement
260 kW
Number of trains
1
Number of passengers per-vehicle
8
Max Height
21 m (69 ft)

568 M

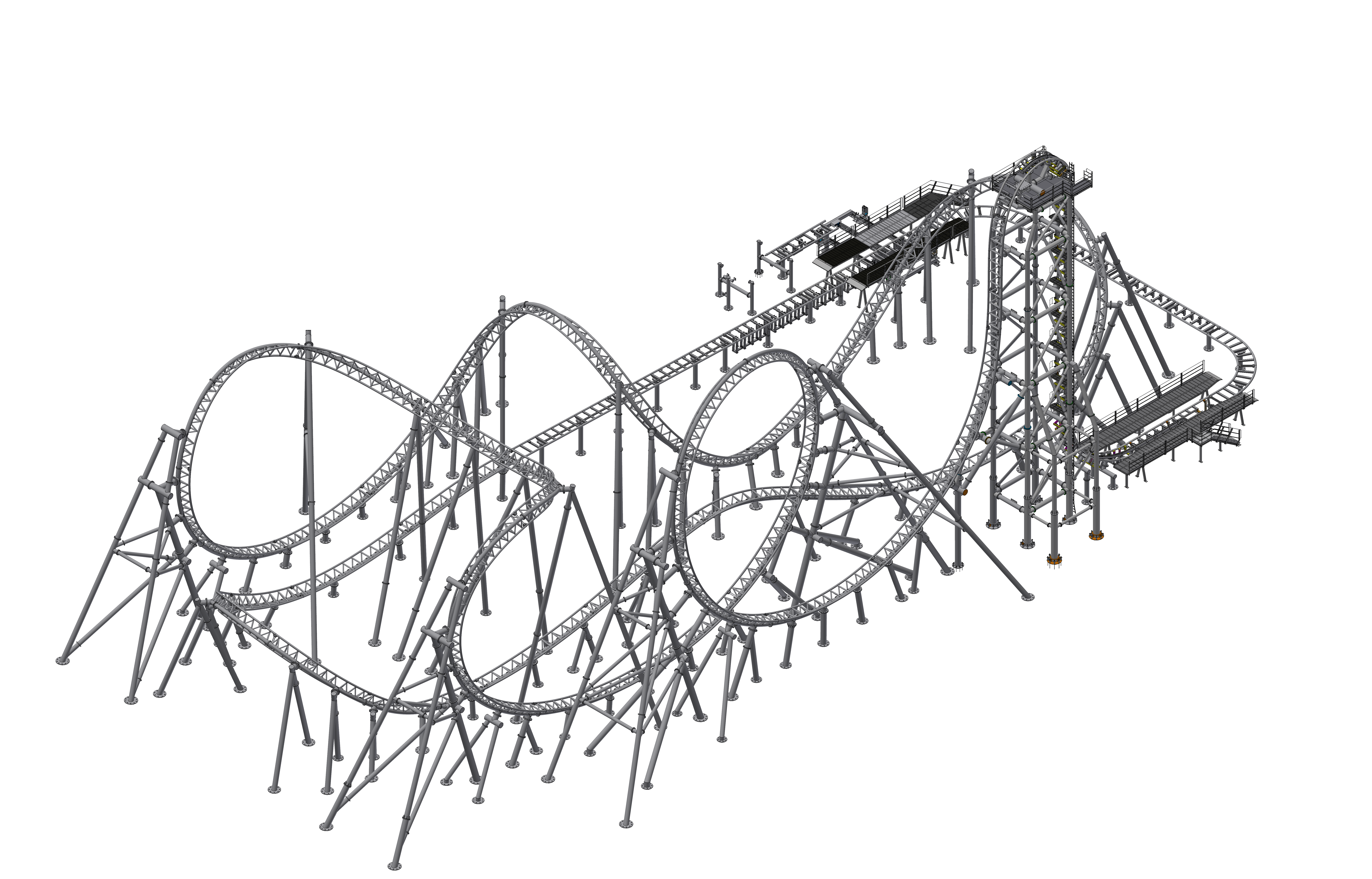

568 M tech drawing
Track length
568 m (1863 ft)
Footprint
46 x 91 m (151 x 298 ft)
Max speed
85 km/h (53 mph)
Restraint type
Lap Bar
Height restriction
120 cm (48 in) minimum
Theoretical hourly capacity
600 pph
Load/unload time
45 s
Ride time
98 s
Number of vehicles per train
3
Power requirement
260 kW
Number of trains
1
Number of passengers per-vehicle
8
Max Height
30.5m (100ft)

689 M

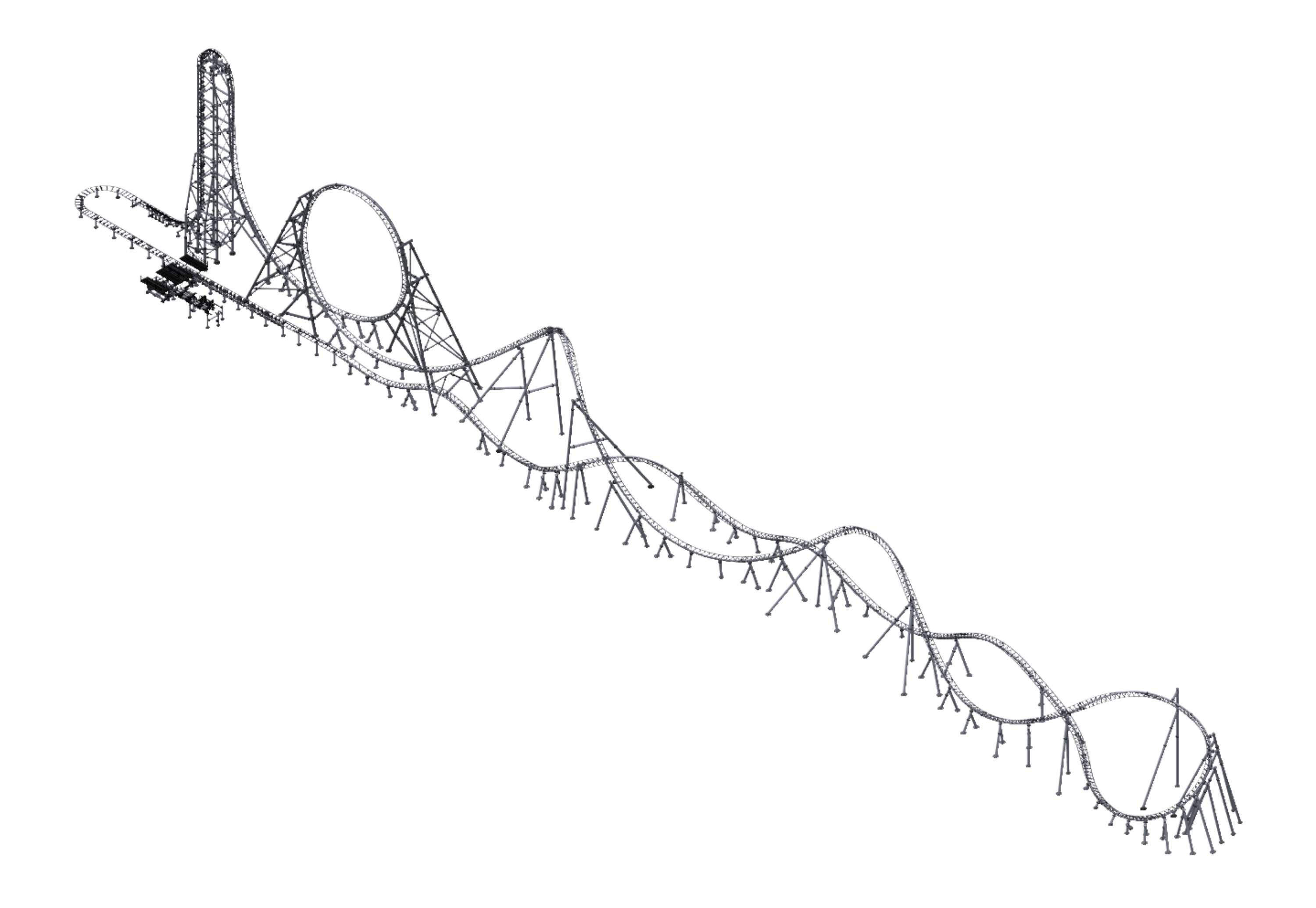

689 M tech drawing
Track length
689 m (2260 ft)
Footprint
258 x 19.6 m (846.5 x 64.3 ft)
Max speed
92 km/h (57 mph)
Restraint type
Lap Bar
Height restriction
120 cm (48 in) minimum
Theoretical hourly capacity
590 pph
Load/unload time
45 s
Ride time
89 s (dispatch to brakes)
Number of vehicles per train
3
Power requirement
300 kW
Number of trains
1
Number of passengers per-vehicle
8
Max Height
39 m (128 ft)
